Pro

Techs love it

Quality through stability

Designed for Professionals

OCCT is the premier tool for your production chain or your after-sale service to check hardware stability for your customers. Its portable nature ensures it starts off a network folder or a USB stick, allowing for an easy startup even in air-gapped environments.

OCCT has been chosen by numerous professionals for its ease of use, its efficiency, and its accuracy.

Portable and easy to use

We hate installers with a passion

OCCT is a fully portable application : there's no installation process, there's nothing to clean after execution. It is designed for RMA and building services alike, allowing you to get insights and check the quality of your work.

Spend time on diagnosing issues rather than installing the diagnosing program. We have been there, we know what it is like, and nothing is more infuriating than having to do the very same clicks to get everything uninstalled after a diagnostic session. Your time is worth much more than that.

Features

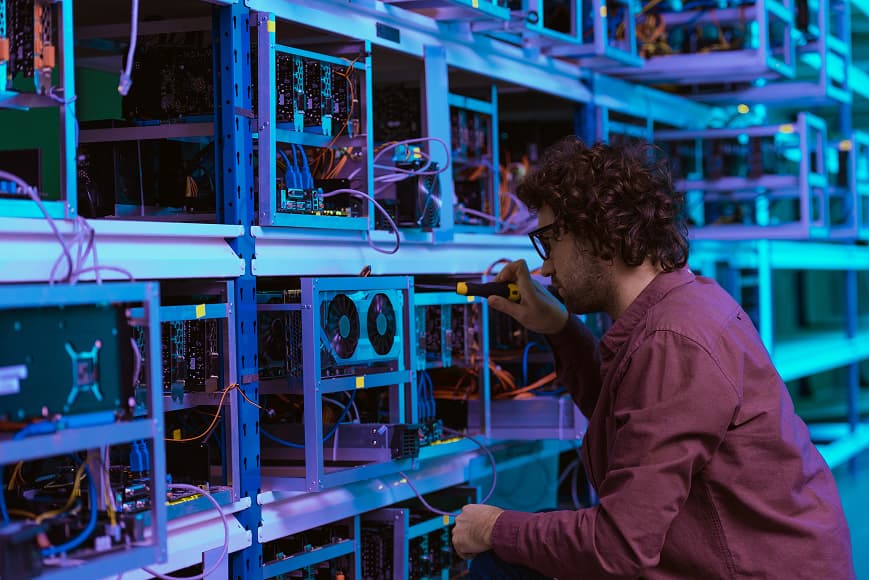

Commercial use rights

OCCT Pro, Enterprise and Enterprise+ are versions dedicated to Professional users. As such, they lift the restriction of the Personal edition, and you are free to use it in a corporate environment.

CSV Reports

In addition to the PNG test report, OCCT Pro will output all the monitoring data in a CSV format. You can use this file to build your own custom graph or conduct your own analysis of the monitoring data contained within.

Also includes the following features from the other editions :

Completely portable

OCCT is a portable exe file. It does not require any installation process : all you have to do is to double click on the exe file, and OCCT will start.

This is done to ease the process of diagnosing issues where you do not want to install a ton of different softwares and uninstall them afterwards.

No dependencies

OCCT does not require any external dependencies - everything is embedded within.

Fully usable in its free edition

Our goal is to be useful to the community. The free edition is fully featured and while there are some limitations, they won't get in the way of diagnosing most issues. All the meaningful tests are accessible.

We do not believe in gating information, results, or anything behind a paywall. This is why the free edition is fully usable and will remain so.

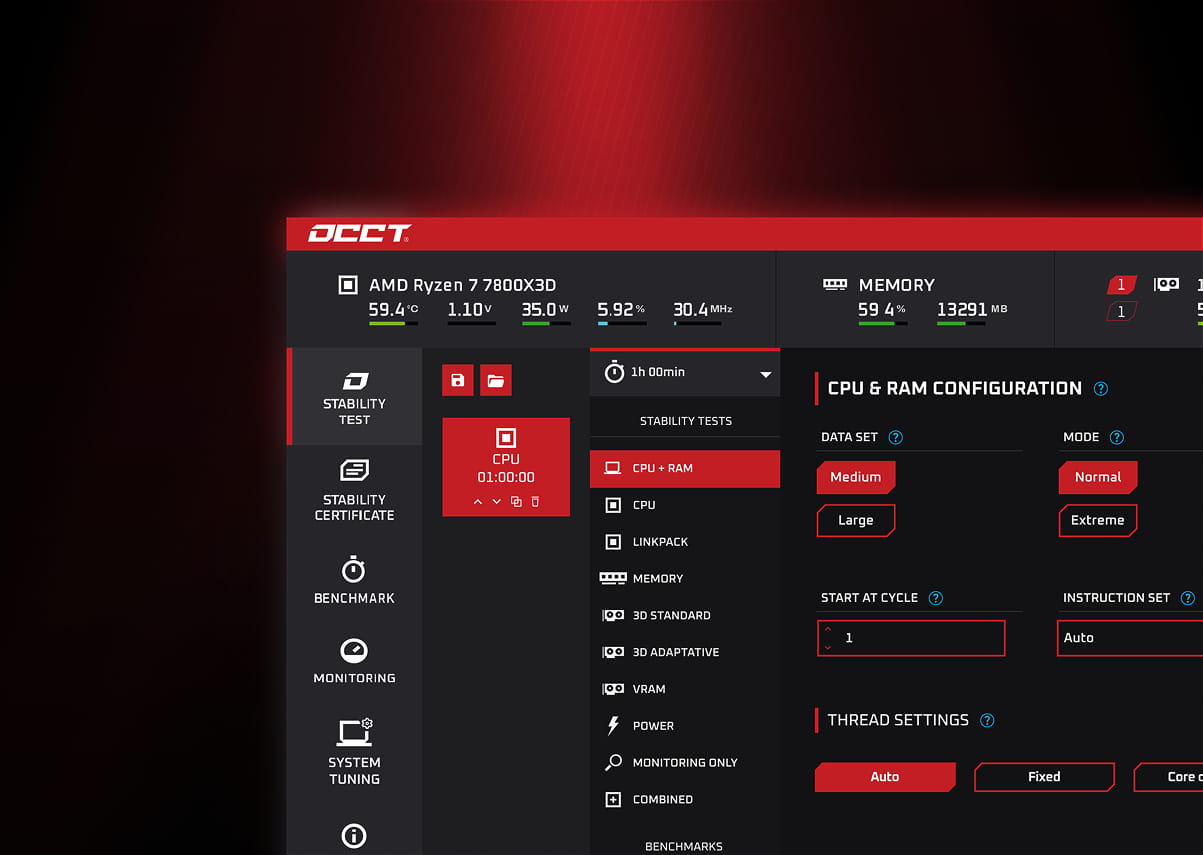

CPU + RAM

The signature test of OCCT. It stresses the whole CPU + Memory chain, allowing for a comprehensive and yet very sensitive stress test.

Your processor won't reach the peak power consumption of the CPU test as it will spend some time waiting for the data to come from your memory.

This test is ideal for testing your whole CPU & Memory system quickly and efficiently. It is very often used as a first intention stress test for an initial, quick overview of your system stability.

CPU

This test will generate insane amount of heat on your CPU. Everything will be executing inside the processor caches, allowing your CPU to reach the true 100% usage.

You will be able to see how your CPU cooling system performs under extreme conditions, a valuable indicator of the overall performance of your cooling.

If an error is detected during this test, it is very likely coming from your CPU. Use it to confirm a previous diagnostic obtained with the CPU + RAM test, pinpointing the cause of the issue.

This test and CPU + RAM allow for per-core testing : select the cores you want to test, how you want them to switch, and so on. It is the most advanced per-core test currently available.

Linpack

It is based on the Linpack benchmark, widely used in the distributed computing industry, and in particular the Intel originating build of the benchmark.

It functions in two phases : one heavy computation phase, and another dedicated to checking results. The amount of memory used by this test dictates the complexity of the problem solved and thus the time spent in each phase.

We recommend staying with rather low amount of memory used, around 2 to 4GB, to keep the test phases short enough for it to be practical.

Memory

The memory test quickly rose in popularity shortly after its release, becoming a staple test. It is very sensitive to any errors occuring during data transfers, and will pick up any timing or frequency related issue very quickly, which are the more common type of errors.

Unlike others, it executes under Windows, and cannot test the memory reserved for other programs. This means if a faulty cell is located within that OS-allocated memory, it won't pick it up.

However, where others will very often let a timing issue pass or require insane amount of time to detect it, OCCT will pick it up in a matter of minutes.

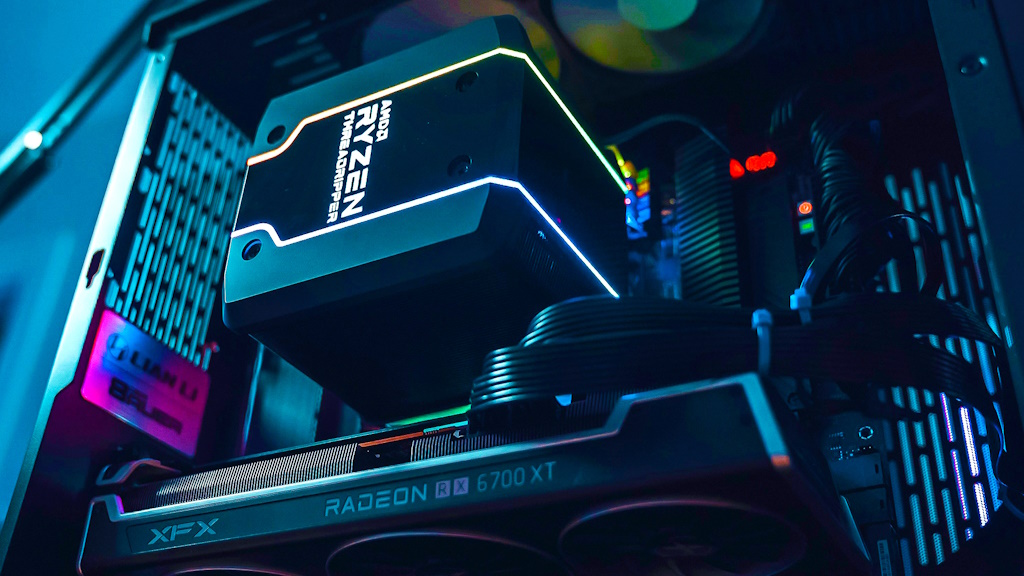

3D Standard

The very first 3D test introduced in OCCT back in 2010 and updated ever since. It uses a custom 3D engine, and runs with DirectX, and is able to reach extreme levels of load, making most cards throttle and whine in despair.

It features error detection, where any artefact generated by the card will be picked up without you having to squint your eyes at a screen to see if things are executing fine.

As with all of OCCT's GPU tests, it can test several graphic cards in parallel, even without a screen being attached, making it perfectly suited for workstation testing.

3D Adaptive

Modern GPUs require modern solutions. They are designed with a game workload in mind, and their frequency peak at around 50% usage, which is the common workload of a game.

Nothing out there was able to both reproduce those conditions and check for errors, until this test was released. It is based on Unreal Engine, as nothing is better suited at reproducing a game-like load than a 3D engine designed for games.

It can run at a specific load, change its load dynamically to test the full GPU VF curve with a single click, or generate heavy transient loads, spiking endlessly, to put your GPU through a lot of different conditions, and detect any issues.

It has been proven by assemblers as more efficient than tests provided by GPU manufacturers themselves, and faster to detect issues. It also supports running on several GPUs at once, and can test graphic cards without a display adapter being plugged in !

VRAM

VRAM can be the source of many issues. This test is one of the few that can throroughly test all your VRAM chips, and report any issue detected.

Sadly, VRAM comes with error detection. This means that each transfer is checked and if a single bit is wrong, data will be retransferred and your GPU will be waiting for the correct data to arrive.

GPU Manufacturers don't disclose the error counter for... reasons. This makes it unable to detect transfer related issues. However, if there's a faulty chip, the test will report it, as error detection cannot correct data which is bad in the chip directly.

As with all of OCCT's GPU tests, it can test several GPUs in parallel, even without a screen being attached, making it suited for workstation testing.

Power

If there's one component that's usually left neglected and yet is essential in any build, it's the power supply. This test creates heavy loads on both your CPU and GPU to try and maximize power consumption, and put your power supply through extreme conditions.

This test is very fast : usually, an undersized power supply will go into protection mode very quickly, resulting in an abrupt black screen, and heat will build up in your case by the huge amount of power consumed, putting your cooling system to its limits.

We advise running this test first, as if it fails due to a PSU issue, it will do so very fast. And more often than not, the power supply is at stake in numerous problems.

Monitoring only

This test is an oddity in the OCCT lineup. It has two modes : the first one will do nothing. It is used to monitor your system and produce an OCCT report, or used as a pause between two tests in a schedule to reach base temperatures by letting the components alone for a while.

The second one allows you to launch a test external to OCCT. Supply it with 3 batch scripts : one for launching, one for stopping, and one for reporting the test status or result, and OCCT will launch it for you. It allows for expanding OCCT's testing capabilities with other stress tests or benchmarks that you want to include besides OCCT's extensive collection.

It will heavily evolve in the future, by allowing the use of plugins, so ready made scripts can be used in a more user-friendly way to control external programs.

Combined

The power test is great at loading both your CPU and your GPU, but we wanted to go further. This test allows you to launch any combination of tests in OCCT, but in parallel. You may want to run CPU+RAM and 3D Adaptive, Memory and 3D Adaptive... your call ! Let your creativity be at play.

Be warned that some combinations don't make sense. Running CPU and Memory especially, since those tests will compete for resources, and be much less efficient than the CPU + RAM test. We took the stance of letting you do your thing and not limiting your creativity.

Some creative combinations have already been found. 3D Adaptive in Switch mode, generating heavy transients loads, combined with VRAM, makes a very good and effective coil whine detector. Play around !

WHEA error tracking

WHEA errors occur at the driver-level : it is akin to a driver crashing and being restarted by Windows. It is completely transparent to the application unless it actively looks for them.

OCCT monitor those issues and report them in the main interface. If there's something off, you'll know. We are the only software available actively tracking and reporting those.

Stop on error

There are two different ways of taking stability : some prefer to stop as soon as an error is found, since this means the computer is unstable. Others finds value in knowing how many errors are detected in a time frame, as this indicates how far from stability you are and give you pointers on how to adjust those settings.

We consider internally that an error is a definitive diagnostic of instability. We give you the choice : make OCCT stop on the first error or WHEA error found, or continue and report any subsequent error until stopped manually.

We are not trying to enforce any policy - we are here to empower you to do what you do best.

A proof of stability

Ever wanted to go beyond screenshots and have undeniable proof of rock-solid stability ? OCBASE acts as a repository for your testing, proving everyone that you indeed tested your system for stability, and successfully so.

Only the systems that pass the tests without any error will be uploaded and get the certificate. You can then share the link and prove everyone your system is stable.

Metisculously crafted

We used our 20 years of experience in stability testing to produce relevant certificates for all situations. They are designed to be as thorough as possible : if there's any issue, our tests will pick it up.

They are available in various duration and targeting different components : CPU, GPU, Memory, and your system as a whole, and with different durations, expressed as levels, ranging from Bronze to Platinum.

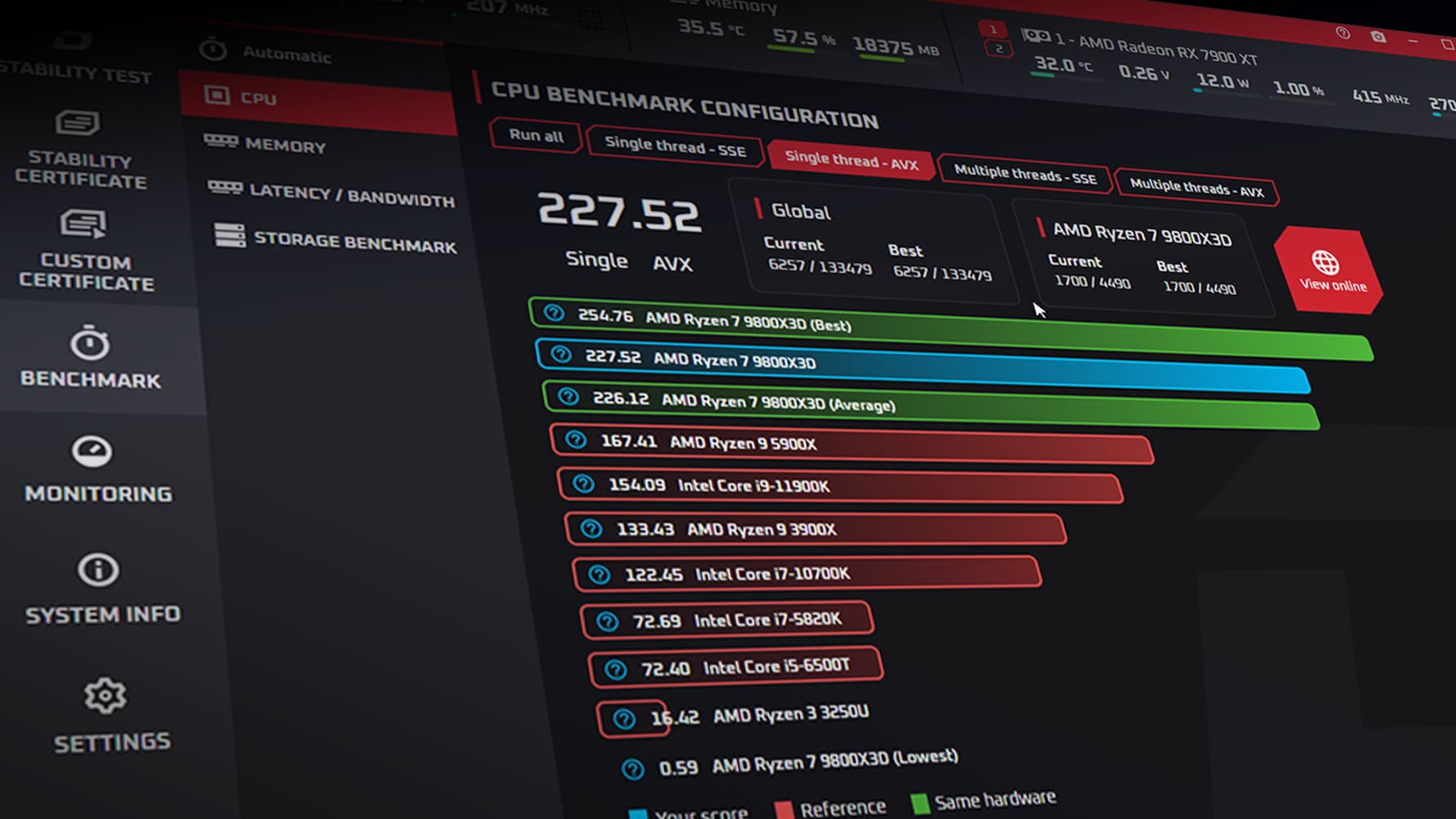

CPU & Memory Benchmark

We're a stability testing software at heart, yet we deem important to know how your system performs under heavy load. We thus built intense benchmarks that focus on efficiency, while others focus on lighter loads.

OCCT's benchmarks are a quick and effective way of knowing the impact of your settings on performance, and see how you fare against others !

Latency & bandwidth benchmark

Optimizing memory is a feat in itself. Yet, it is notoriously hard to get accurate measures for your memory subsystem performance. OCCT solves this by giving you access to L1, L2, L3, and Memory Latency & Bandwidth benchmarks.

Sticking to our own beliefs, this benchmark is available for free.

It is capable of giving you precise measures for different workloads, allowing you to plot a full graph of your memory subsystem performance. You are also able to export it in a single click to exploit the data the way you see fit.

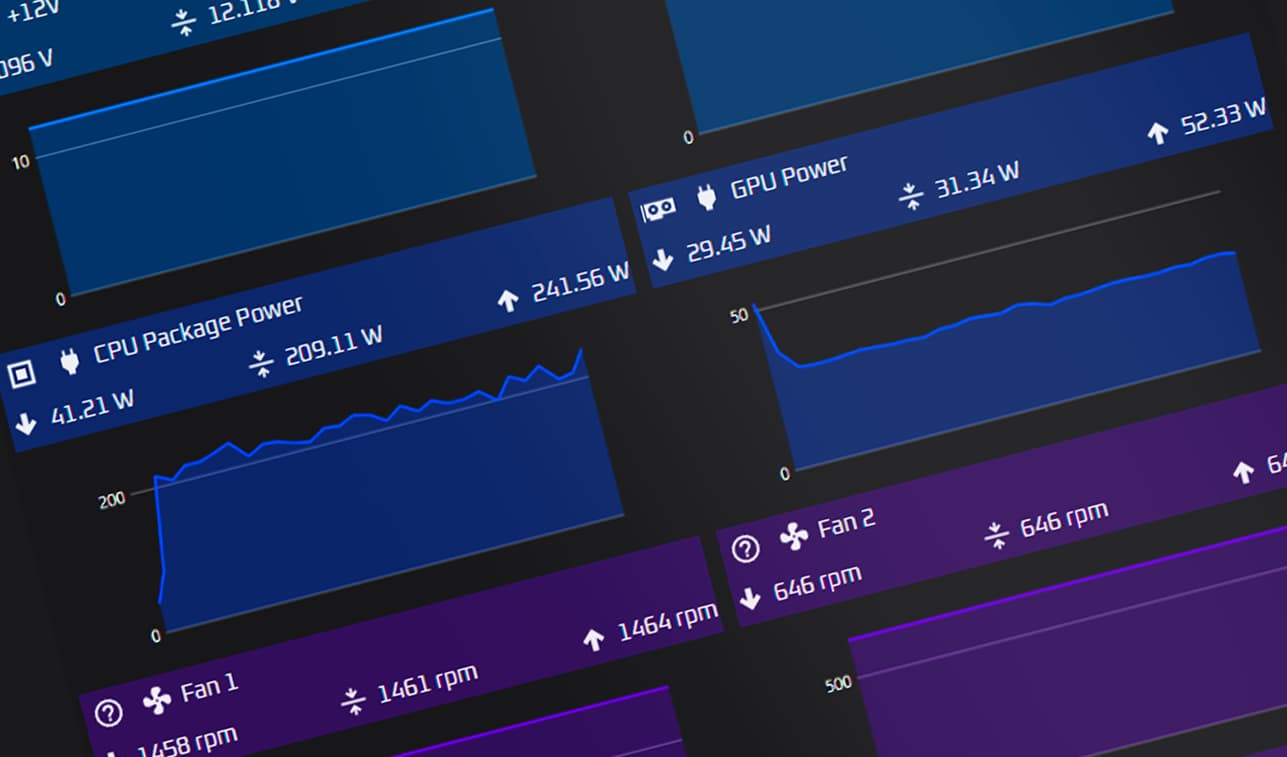

Monitoring

We rely on the current industry standard for getting the most accurate and precise readings so you know exactly what is going on : HwInfo.

You have access to a simplified view of your systems vitals, with a table and real-time graphs, very configurable and designed to be as easy to read as possible.

The data is massive, and all of the internal workings and sensors of your computer are available. The average number of sensors is well above 200 !

System Information

Access to thousands of properties on your current system given by the industry standard : HwInfo.

You'll see everything, ranging from CPU properties, GPU Information, Memory stick data, and even better, we include timing information.

Instant test launch

Tired of waiting 10s before launching a test ? Subscribe to our patreon and unlock OCCT, so each test starts immediately. This will speed up testing, especially when overclocking !

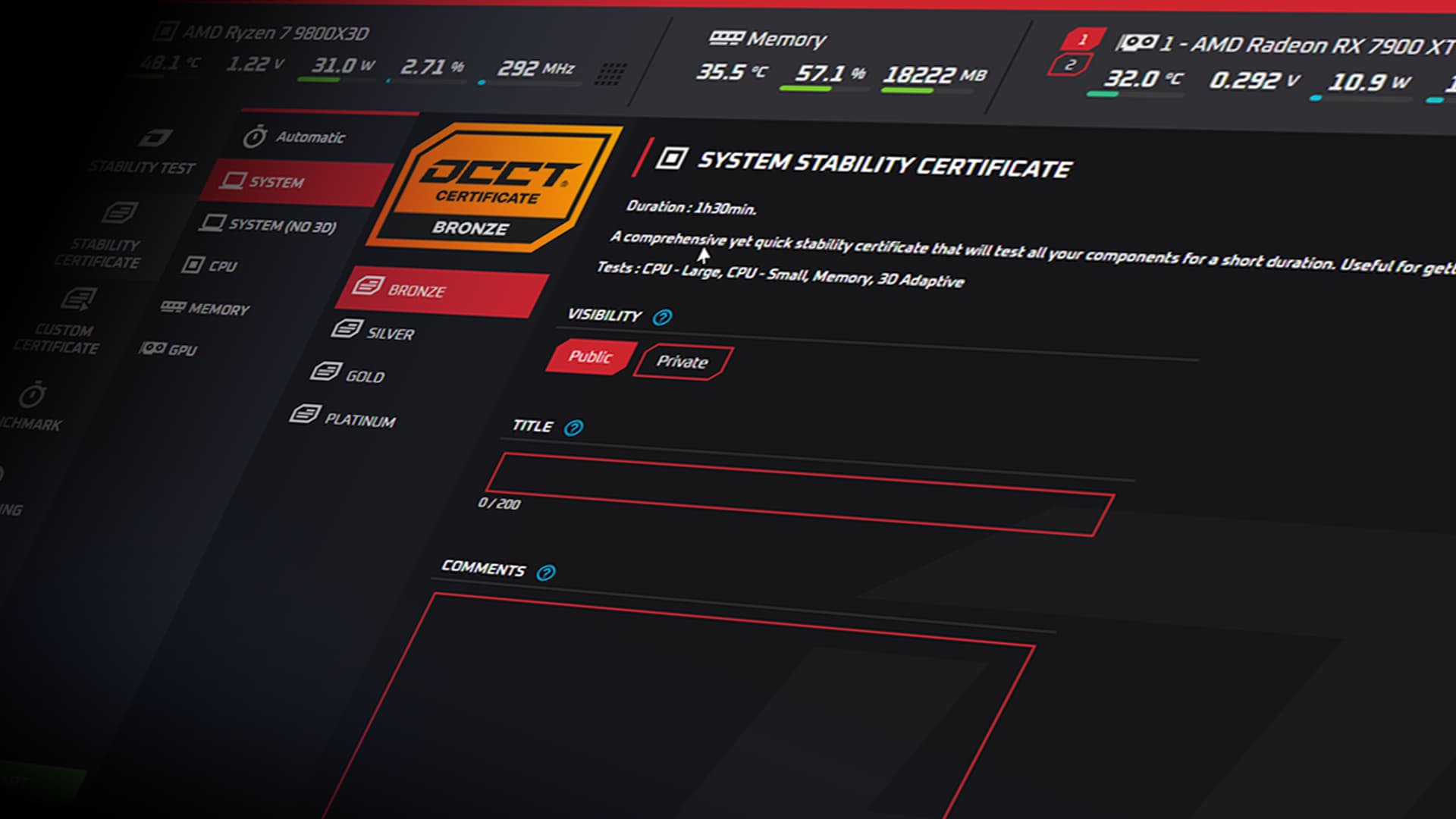

Stability certificates

Unlock stability certificates and prove the world your system is stable. Undergo those hand-crafted testing sessions and get an online link to share your test results with the world !

Refer to the stability certificate section above for more information.

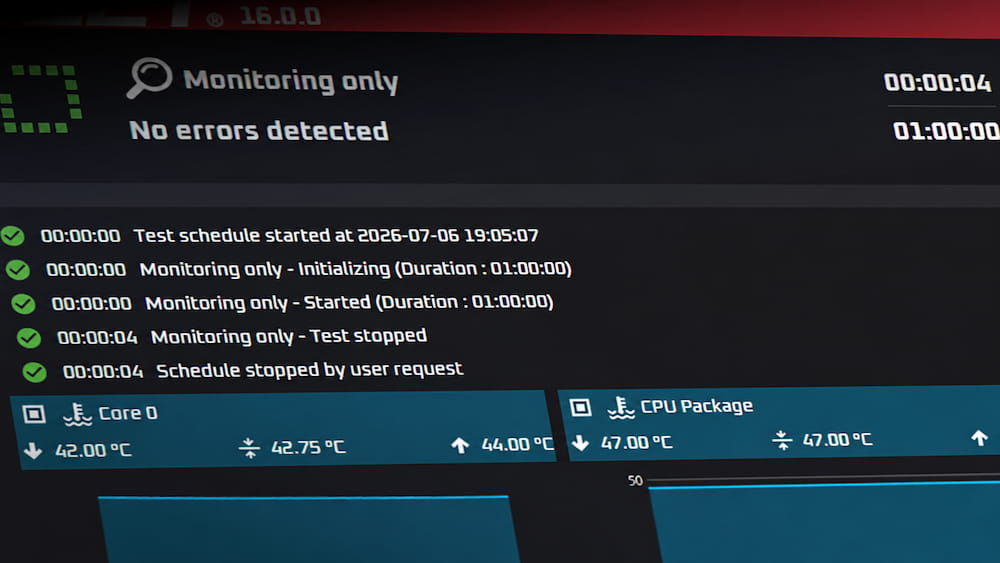

Reports

Keep track of your test results with OCCT's report. It will include the exact test execution, and all the monitoring information, stored as a PNG file, easily shareable online.

Unlimited test duration

OCCT is by default limited to 1 hour of testing. Patreon members enjoy unlimited testing, allowing for brutal and intense testing sessions. 48 hours is the current record. Will you be able to go further ?
